Description
Technical features:
Movements on the front:
rise/fall 4 cm
shift +/- 2.5 cm

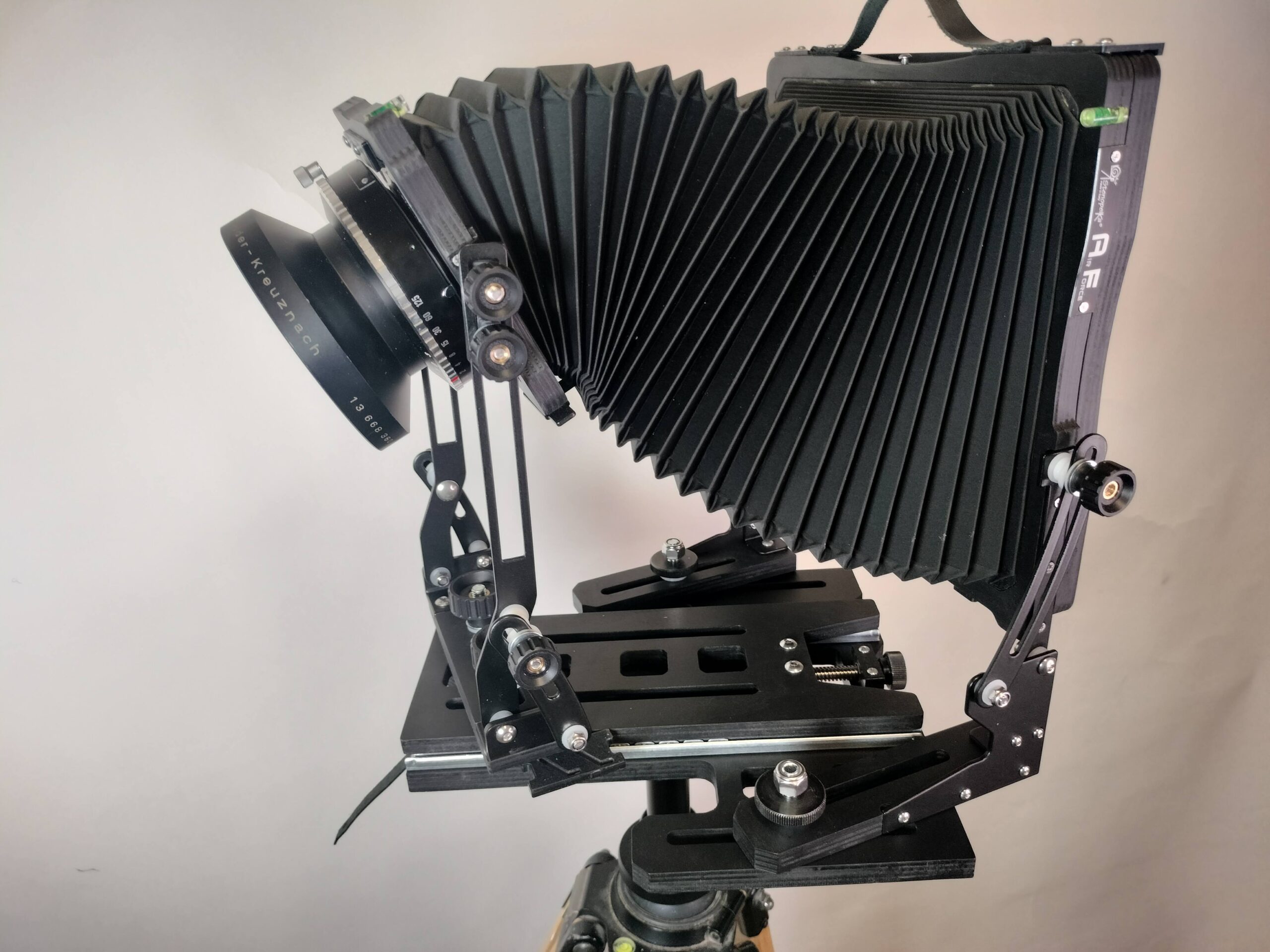

tilt on baseboard +20/-90°
tilt on lensboard limitated from bellows swing +/- 14°
Movements on the rear:
tilt on baseboard +90/-20°
swing +/- 14°

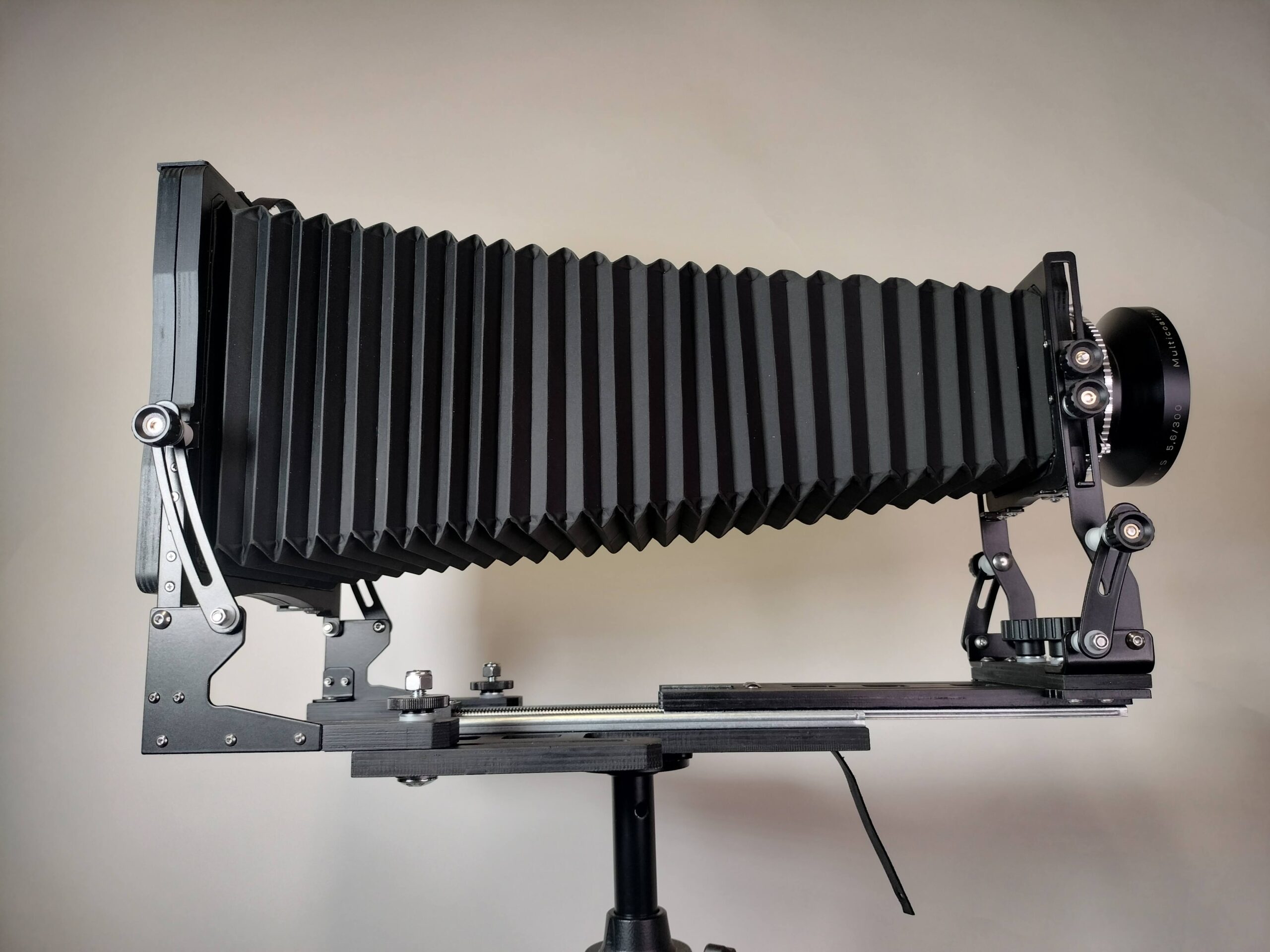

Max extension 51 cm
Min extension 6 cm
Weight 2,4 kg,

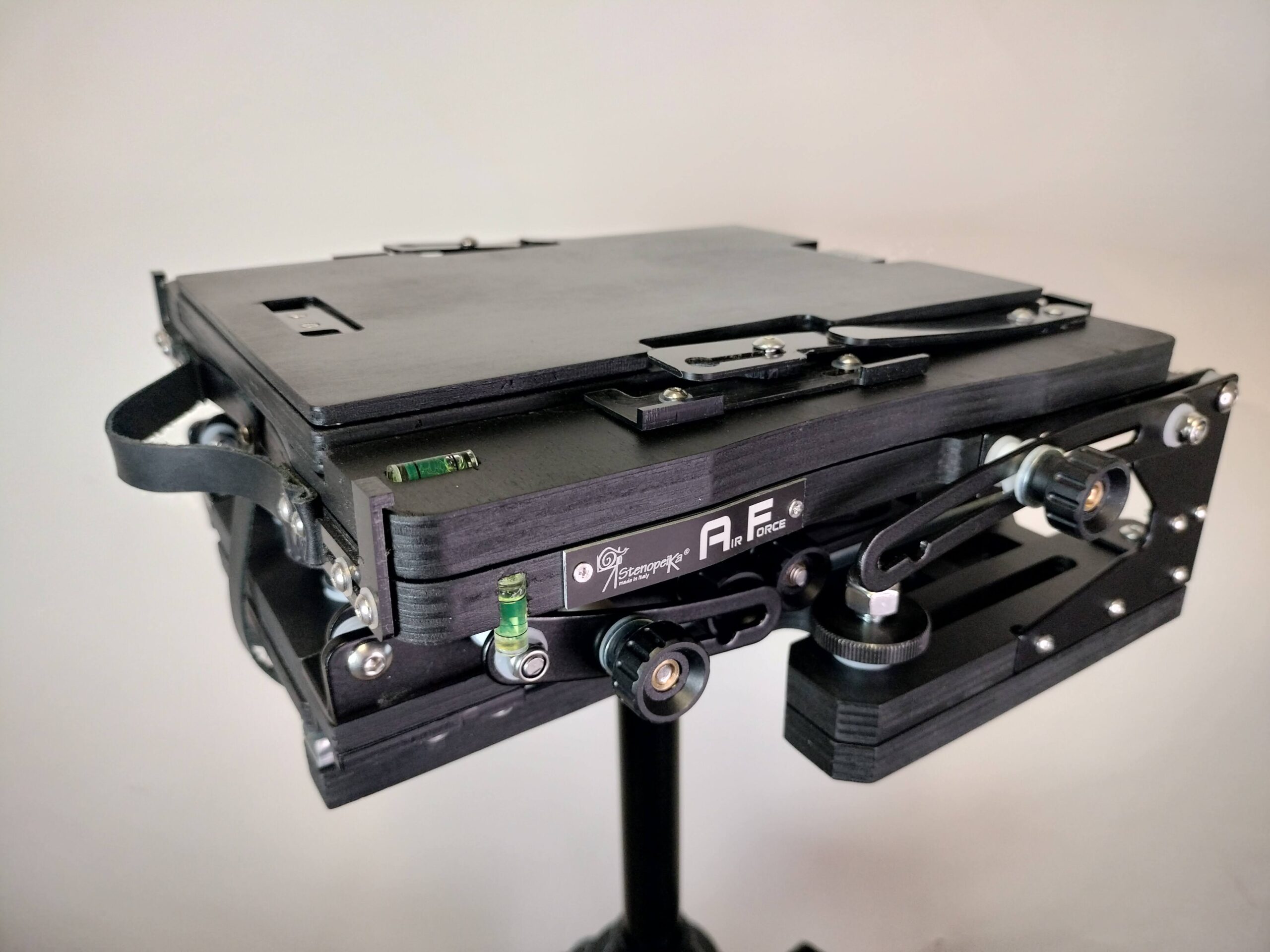

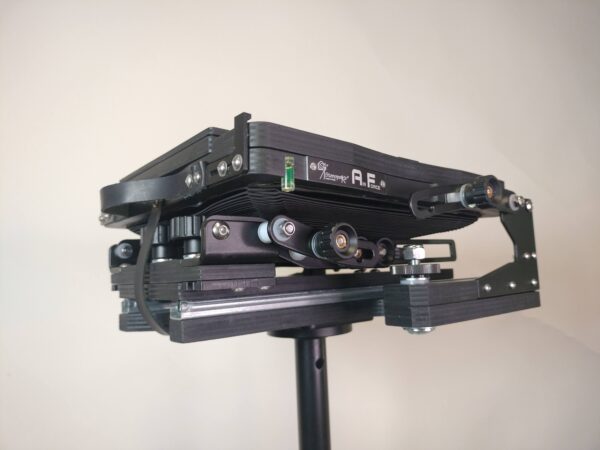

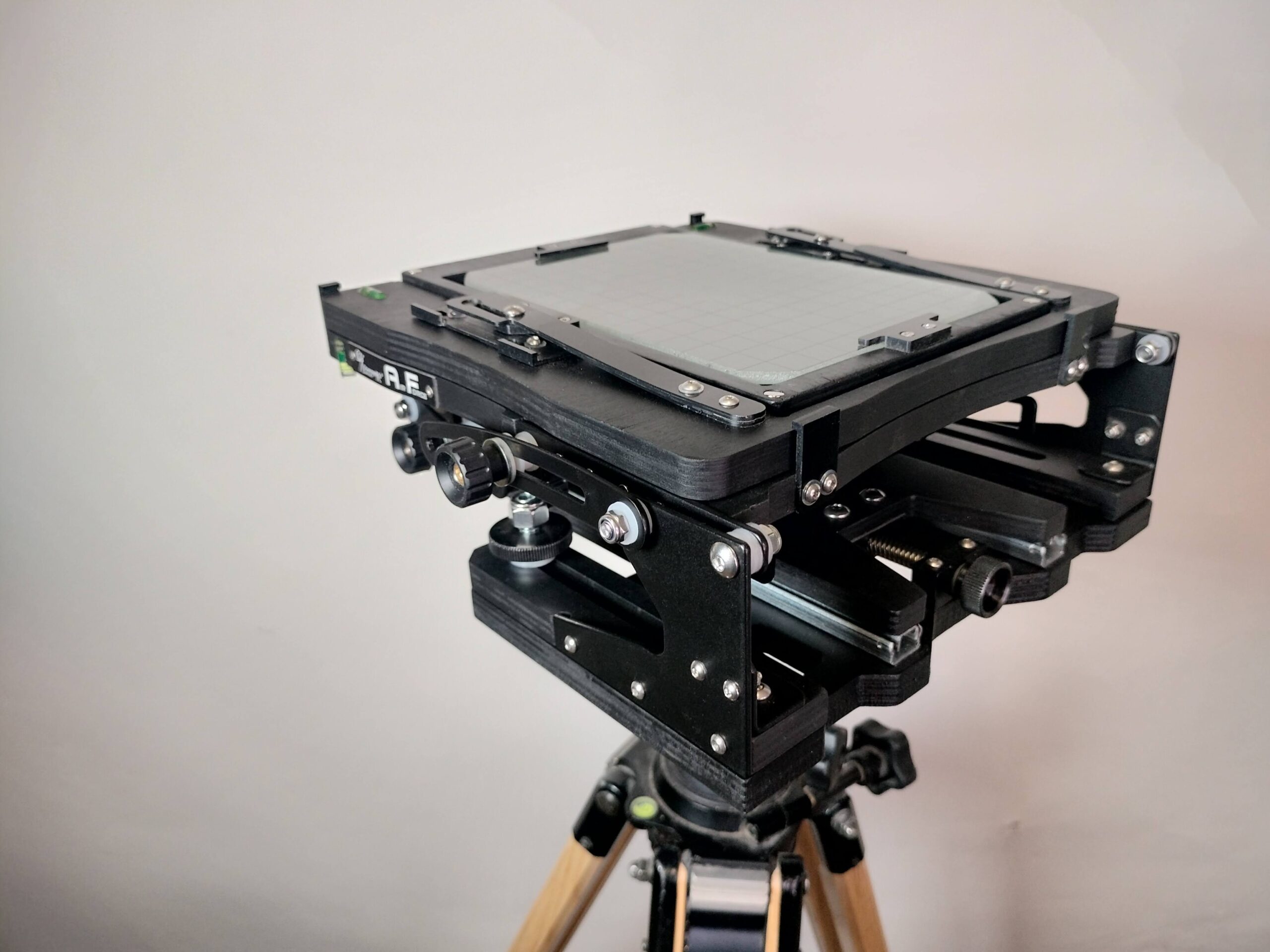

29x26x11,5 cm when closed
lenbsboard: linhof technika
